Description

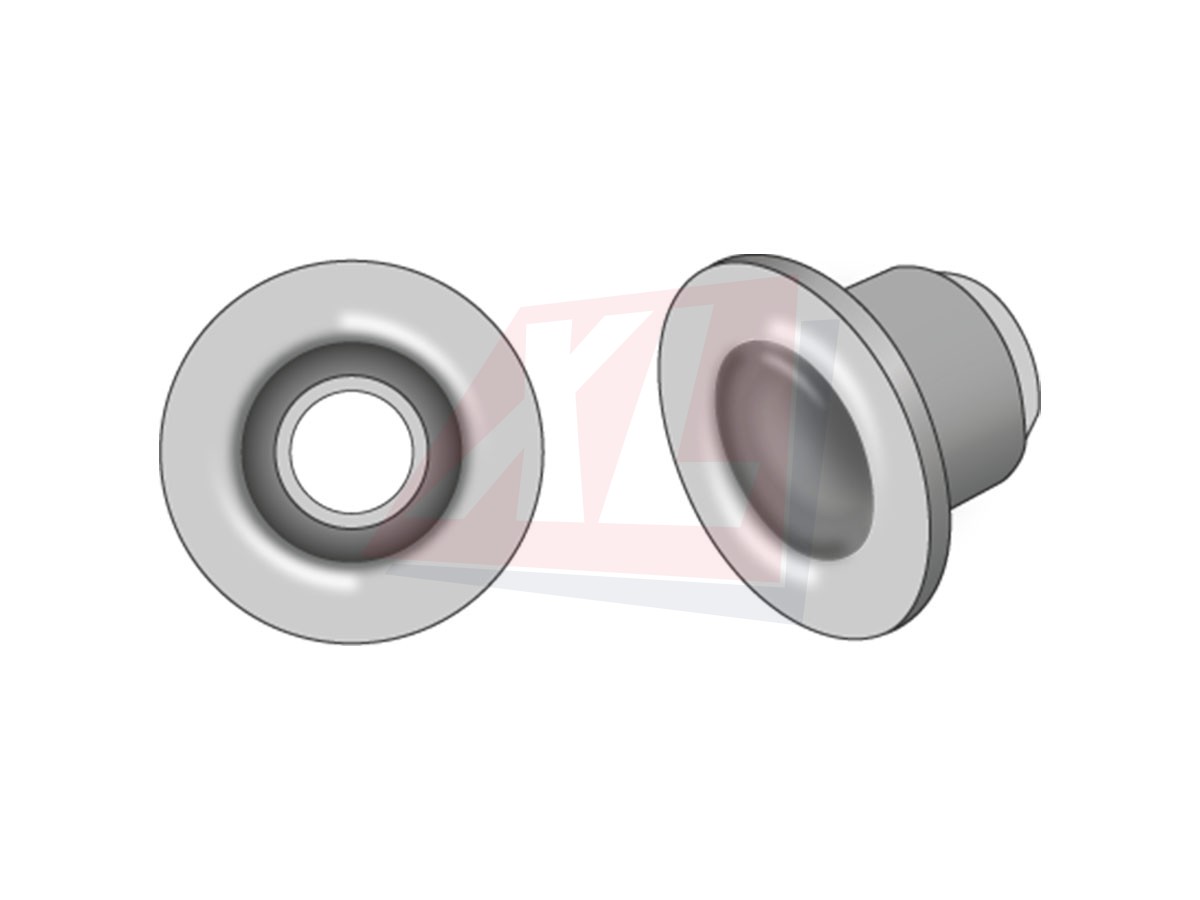

An essential part of the Cedral Drill-Screw fixing system, the Cedral protector sleeve plays a crucial role in the installation of EQUITONE [natura] PRO and EQUITONE [pictura] panels. This Cedral protector sleeve, made of high-quality stainless steel (INOX A2/304), is designed to extend the life of the panels and ensures reliable fastening to the timber support structure.
Function and benefits
The main function of the protective sleeve is to provide additional protection against friction during installation. When screws are screwed into the panels, the protective anti-graffiti coating layer on the EQUITONE boards may be affected. By placing the sleeves in each drill hole before the screws are fixed, this coating is protected, helping to maintain the aesthetic and functional properties of the panels.
In addition, the sleeve ensures better and more secure insertion of the screws into the panels, leading to a sturdier and more durable construction. The use of these protective sleeves minimises the risk of damage during assembly, significantly improving the quality of the final result.
Specifications
- Protective sleeve dimensions:
- Outer diameter: 7 mm
- Inner diameter: 5.4 mm
- Flange diameter: 11.7 mm
- Material:
- Made of INOX A2/304, providing excellent corrosion resistance and durability.
- Packaging:
- The sleeves come in convenient packs of 250, making it easy to keep track of the quantity required for your project.
Installation instructions
For a correct installation, the sleeves should be inserted into each drill hole of the EQUITONE panels before applying the Cedral drilling screws. This not only ensures optimal fastening, but also protects the panels from possible damage due to friction and other influences.
By using these protective sleeves, you are assured of a quality installation that ensures the aesthetics and functionality of your project.
